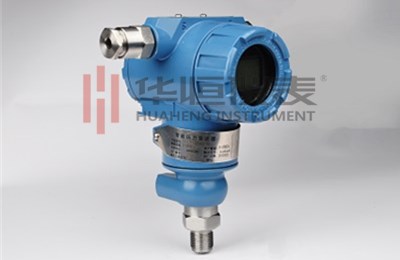

智能壓力變送器由智能傳感器和智能電子板兩部分組成，智能傳感器部分包括：電容式傳感器、測量膜片檢測電路、溫度傳感器和溫度補償電路等組成；智能電子板板部分包括：微電腦控制器及外圍電路組成，用于測量液體、氣體或蒸汽的壓力，然后將壓力信號轉變成4～20mADC信號輸出。可與HART手操器相互通訊，通過它進行設定，調整壓力范圍，監控或與上位機組成現場監控系統，JSHJ-3851智能壓力變送器廣泛應用于工業管道中弱腐蝕性液體、氣體、蒸汽的測量和控制系統。



　　The intelligent pressure transmitter is composed of two parts:an intelligent sensor and an intelligent electronic board.The intelligent sensor part includes:a capacitive sensor,a measuring diaphragm detection circuit,a temperature sensor and a temperature compensation circuit;the intelligent electronic board part includes:a microcomputer controller And peripheral circuit composition,used to measure the pressure of liquid,gas or steam,and then convert the pressure signal into 4-20mADC signal output.It can communicate with the HART handheld operator,through it to set,adjust the pressure range,monitor or form an on-site monitoring system with the host computer.The JSHJ-3851 intelligent pressure transmitter is widely used in industrial pipelines for weak corrosive liquids,gases,Steam measurement and control system.



　　智能壓力變送器安裝須知：



　　Installation instructions for smart pressure transmitter:



　　1、變送器應安裝于通風、干燥、無蝕、陰涼處，如露天安裝應加防護罩，避免陽光照射和雨淋，否則將會使變送器性能降低或出現故障。



　　1.The transmitter should be installed in a ventilated,dry,non-corrosive,and shady place.If installed in the open air,a protective cover should be added to avoid sunlight and rain,otherwise the performance of the transmitter will be degraded or malfunctions.



　　2、變送器利用壓力接口螺紋（標準配置為M20×1.5）直接安裝在被測系統的管道或容器壁上，不必使用安裝支架。產品壓力接口（標準配置）備有密封槽，被測壓力較大時，加裝尼龍或紫銅墊片可保證良好密封。



　　2.The transmitter is directly installed on the pipe or container wall of the system under test by using the pressure interface thread(standard configuration is M20×1.5),without using a mounting bracket.The product pressure interface(standard configuration)is equipped with a sealing groove.When the measured pressure is large,a nylon or copper gasket can be added to ensure a good seal.



　　3、安裝變送器時，請注意須使電纜與產品同向轉動，否則，會影響產品的防護效果并導致產品故障。



　　3.When installing the transmitter,please make sure that the cable and the product rotate in the same direction,otherwise,the protection effect of the product will be affected and the product will malfunction.



　　4、零點（Z），量程（S）可調產品調試方法：擰開標有需調整參數點的螺絲，用小螺絲刀伸入其中，輕輕轉動可調電阻，并同時監控數據，調試完畢，擰緊螺絲，以免潮氣進入。



　　4.Zero point(Z),range(S)adjustable product debugging method:unscrew the screw marked with the parameter point to be adjusted,insert it with a small screwdriver,gently turn the adjustable resistance,and monitor the data at the same time,after the debugging,tighten it Screws to prevent moisture from entering.



　　5、變送器屬精密儀器，安裝時忌強力沖擊、摔打，擰緊力矩應小于70Nm，小量程變送器（量程小于0.5MPa）擰緊力矩應小于14Nm.注意保護變送器引出電纜。在工業現場使用時，建議使用金屬管保護或者架空。切勿松動電纜引出端的密封螺帽，避免潮氣進入。



　　5.The transmitter is a precision instrument.Avoid strong impact and beating during installation.The tightening torque should be less than 70Nm,and the tightening torque of small range transmitters(range less than 0.5MPa)should be less than 14Nm.Take care to protect the cables leading from the transmitter.When used in industrial sites,it is recommended to use metal pipe protection or overhead.Do not loosen the sealing nut on the lead-out end of the cable to prevent moisture from entering.



　　華恒儀表可以為您提供專業的智能壓力變送器選型建議和可靠的智能壓力變送器產品，有任何疑問可以致電180 9235 6836，我們會有專業的技術人員幫您解答，希望能帶給您幫助！



　　Huaheng Instrument can provide you with professional smart pressure transmitter selection suggestions and reliable smart pressure transmitter products.If you have any questions,you can call 180 9235 6836.We will have professional technicians to help you answer.To help you！
